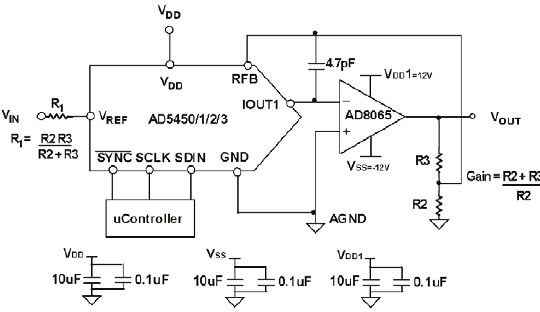

使用 AD5452、12 位、1CH
電流輸出 DAC 系列的可編程增益
元件。在要求DAC輸出電壓范圍大于輸入電壓的應用中，可以使用可編程增益
電路。該電路使用乘法 DAC AD5452 和快速、低失調
運算放大器 AD8065 提供可編程增益功能。最大增益值和溫度系數由外部
電阻設置，可編程增益的分辨率由 DAC 分辨率設置
說明
-
Programmable Gain Element Using the AD5452, 12-Bit, 1CH Current Output DAC Family. In applications where the DAC output voltage range is required to be larger than the input voltage, a programmable gain circuit can be used. This circuit provides a programmable gain function using a multiplying DAC, the AD5452 and a fast, low offset operational amplifier, the AD8065. The maximum gain value and the temperature coefficient are set by external resistors and the resolution of the programmable gain is set by the resolution of the DAC
主要特色
-
DAC Resolution
12 Bit
-
Number of Channels
1CH
