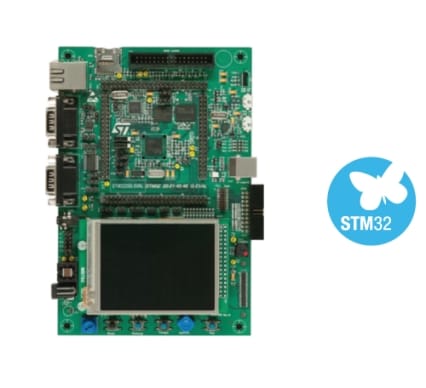

STM32F207IG MCU的評估板

STM3220G-EVAL

設計簡介

The STM3220G-EVAL evaluation board is a complete demonstration and development platform for STMicroelectronics ARM^?Cortex^?-M3 core-based STM32F2 Series embedding a high-performance STM32F207IGH6.

The full range of hardware features on the board helps users to evaluate all the peripherals (USB OTG HS, USB OTG FS, ethernet, motor control, CAN, microSD^?card, smartcard, USART, audio DAC, RS-232, IrDA transceiver supported up to board version MB786 C-07, SRAM, ST MEMS, EEPROM and others) and to develop applications.The embedded in-circuit ST-LINK/V2 provides debugger and programmer facilities for the STM32.

主要特性

16-Mbit SRAM
1-Gbyte or more microSD^?card
Boot from user Flash memory, system memory or SRAM
Both ISO/IEC 14443 type A and B smartcard support
I²C compatible 64-Kbit serial interface EEPROM, ST MEMS and I/O expander
IEEE 802.3-2002 compliant ethernet connector
Two CAN 2.0 A/B channels on the same DB connector
RS-232 communication
IrDA transceiver (supported up to version MB786 C-07 of the board)
USB OTG (HS and FS) with Micro-AB connector
Inductor motor control connector

I²S audio DAC, stereo audio jack for headset
3.2" 240x320 TFT color LCD with touch screen
4-color LEDs
Camera module and extension connector for ST camera plug-in
Joystick with 4-direction control and selector
Reset, wakeup, tamper and user button
RTC with backup battery
Extension connector for daughterboard or wrapping board
JTAG, SW and trace debug support
Embedded ST-LINK/V2
Five 5V power supply options: power jack, USB FS connector, USB HS connector, ST-LINK/V2 or daughterboard
