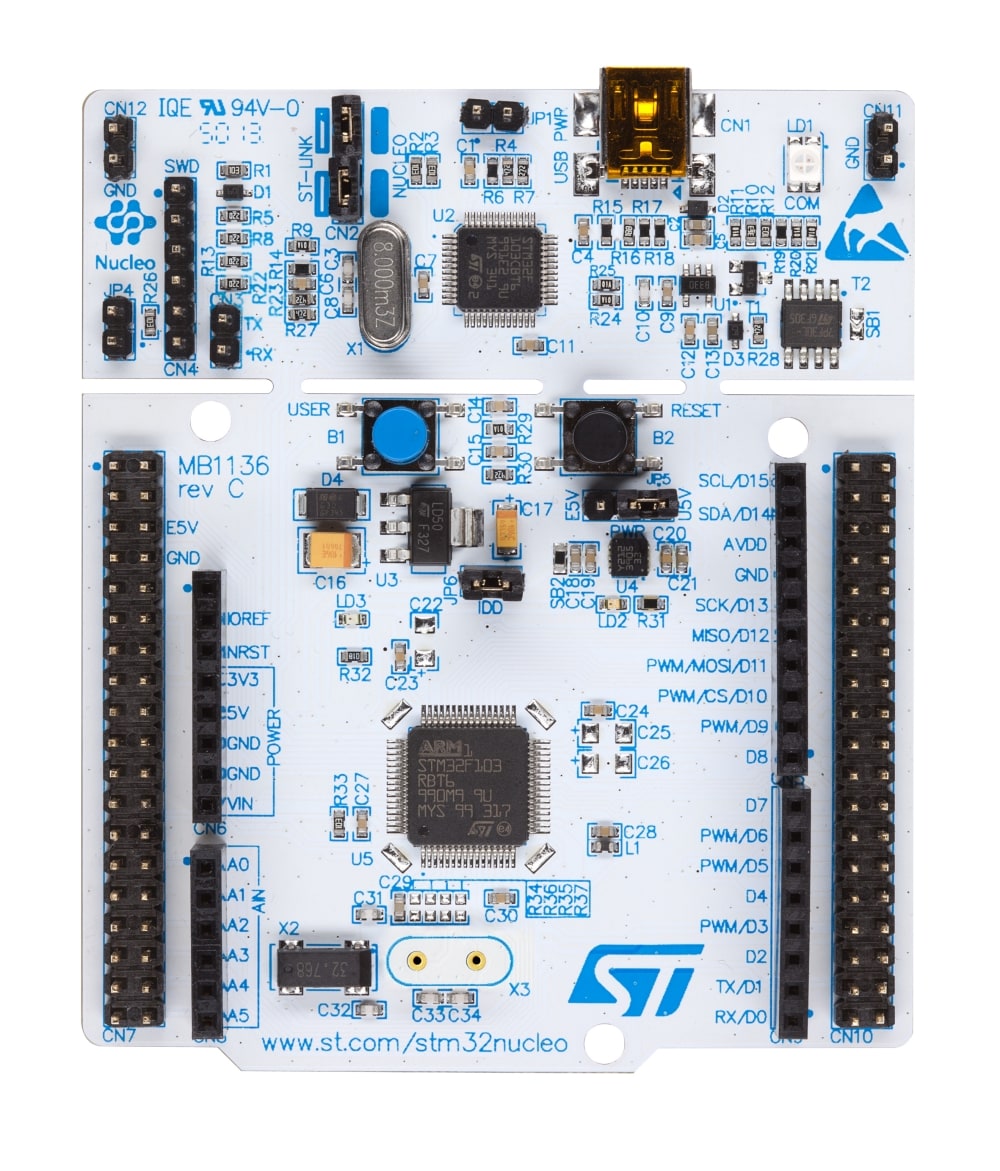

The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode.
The ARDUINO? Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.
The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| STM32F091RC | STM32主流MCU | 主流ARM Cortex-M0基本型系列MCU，具有256 KB Flash、48 MHz CPU、CAN和CEC功能 | 點擊下載 |
