The STEVAL-ISB68WA is a reference design for wearable applications based on the STWLC68 wireless power receiver. The kit includes a receiver board with a small 15 mm diameter receiving coil and provides a constant output voltage with 2.5 W maximum output power.
The board supports Foreign Object Detection (FOD) for safe operation and is ready for immediate use when placed on a suitable wireless power transmitter.
An on-board LED indicates connection with the transmitter succeeds and enabled output voltage, and a programmable interrupt output is available to inform the host system in user applications.

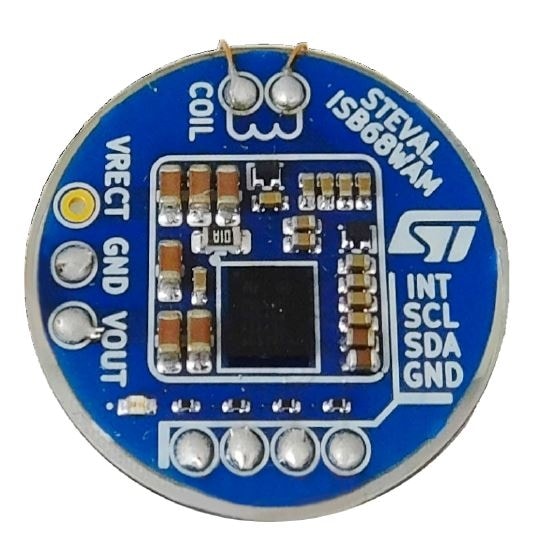

The complete application is confined in a 10x10 mm PCB area and the layout is designed to facilitate probing and user customization.
A free STSW-ISB68GUI Graphic User Interface (GUI) is provided to monitor and configure the receiver on your PC using the USB-to-I2C dongle included in the kit.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| STWLC68 | 無線充電IC | 用于20W應用的Qi電感式雙模無線功率收發器 | 點擊下載 |
