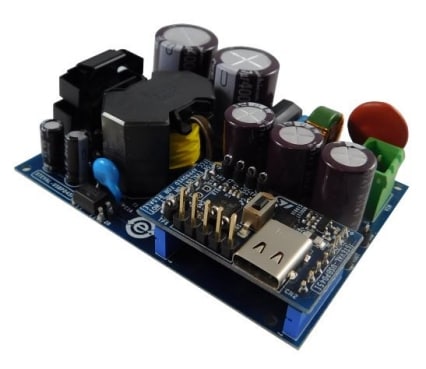

The STEVAL-USBPD45C 45 W AC-DC adapter reference design features a USB Type-C connector and functions as a USB Power Delivery provider with a single source port.
The reference design accepts a wide input mains range and delivers 5 V, 9 V and 15 V output voltage profiles, according to the Source Power Rules of the current USB Power Delivery specification.
The adapter architecture is based on two boards: the STEVAL-USBPD45P power supply board implementing the power stage in flyback topology with synchronous rectification, and the STEVAL-USBPD45I Digital Control Board designed to control the USB Type-C connector and manage the USB Power Delivery stack and the adaptive synchronous rectification algorithm.
The flyback converter is based on the STCH03 offline PWM controller for low standby adapters and the STF7N80K5 MDmesh? K5 primary MOSFET.
On the secondary side, the adaptive synchronous rectification with STL40N75LF3 Power MOSFET is controlled and driven directly by the STM32F051 MCU, allowing an overall efficiency improvement with a very low external component count.
The USB type-C port is controlled by the certified STUSB1602A, enabling the VBUS power path and integrating high voltage protections on VBUS and CC lines.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| STCH03 | PWM控制器 | 用于低待機功率適配器的離線PWM控制器 | 點擊下載 |
| STM32F051C4 | STM32主流MCU | 主流ARM Cortex-M0基本型系列MCU，具有16 KB Flash、48 MHz CPU、運動控制和CEC功能 | 點擊下載 |
| STUSB1602 | USB C型和電源傳輸 | USB Type-C控制器（具有Tx/Rx線驅動器和BMC） | 點擊下載 |
