VIP 0-M07-ADIS板:連接到SPC560B-DIS發現板，基于M0-7設備來驅動汽車前燈

VIP-M07-ADIS

設計簡介

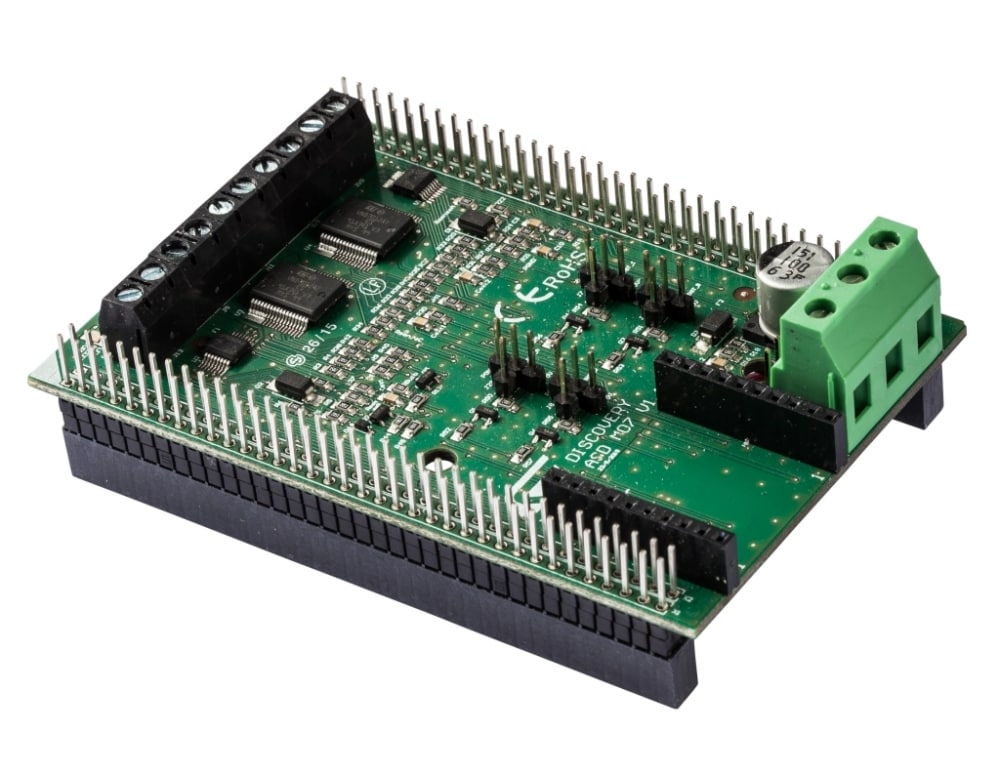

The VIP-M07-ADIS board enables you to drive a complete car front light by using M0-7 devices by connecting it to the SPC560B-DIS discovery board, application firmware examples and available GUI.

主要特性

4 soldered M0-7 high side drivers:
- 1 VND7020AJ
- 2 VND7012AY
- 1 VNQ7050AJ
Board size 100 x 55 mm
Two extension headers (2 x 36 pin - 100 mil) for quick connection to SPC560B-DIS discovery board
Controllable by dedicated GUI for HSD or for H-Bridge available on www.st.com
Free ready to run application firmware availabe on www.st.com, to support quick evaluation and development
