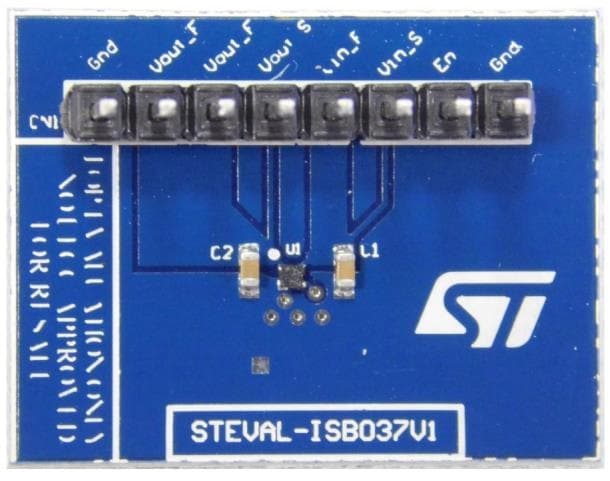

The STEVAL-ISB037V1 board features the LD39020 high performance linear voltage regulator, configured to convert a DC input voltage from 2.4 V to 5.5 V into a precise and stable 1.8 V output voltage.
Only two small ceramic capacitors are needed to implement the linear regulator solution.
The very low dropout LD39020 voltage regulator features high PSRR and low quiescent current in a tiny DFN4 package with a footprint of only (1 x 1) mm2.
It is designed for low-power battery operated equipment such as smartphones, tablets and wearable devices.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| LD39020 | 低壓降(LDO)線性穩壓器 | 200 mA極低靜態電流線性穩壓器IC | 點擊下載 |
