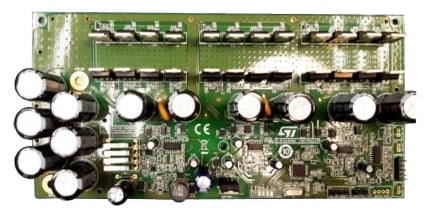

The 1 kW BLDC traction controller is a reference design for low voltage battery powered light electric vehicles running on nominal 48?VDC and 50?A peak current. The wide input voltage range (42-65?V) and combination of hardware and design features deliver a highly responsive and efficient solution with fault diagnostic features that render this drive a highly viable solution across a variety of applications.
The inverter stage in full bridge 3-phase topology includes N-channel Power MOSFETs featuring STripFET F6 trench gate technology, driven by smart L6491 gate driver ICs with embedded comparators ensuringr real time cycle-by-cycle overcurrent protection.
The motor control logic is based on six step commutation in voltage mode, with Hall Sensor feedback for position detection. Detailed instructions are provided for configuring the firmware with an easy-to-use GUI and compiling the binary files for download onto the STM8S microcontroller.
The microcontroller section on the board can accommodate I2C and UART communication protocols for enhanced interfacing and control such as LCD display.
For further development, ST provides the ST Visual Development (STVD) environment and technical support for customizing and scaling the solution for Industrial and Automotive applications.
The system has been field tested on an e-Rickshaw, but it is designed for use with any low speed or light electric vehicles.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| STP100N8F6 | N-溝道 (>30V 至 350V) | N溝道80 V、0.008 Ohm典型值、100 A STripFET F6功率MOSFET，TO-220封裝 | 點擊下載 |
| VIPER11 | 高壓轉換器 | 節能離線高壓轉換器 | 點擊下載 |
| L6491 | 高壓工業驅動器 | 高壓高側和低側4 A柵極驅動器 | 點擊下載 |
| STM8S105C6 | STM8 8位MCU | 主流基本型系列8位MCU，具有32 KB Flash、16 MHz CPU和集成EEPROM | 點擊下載 |
