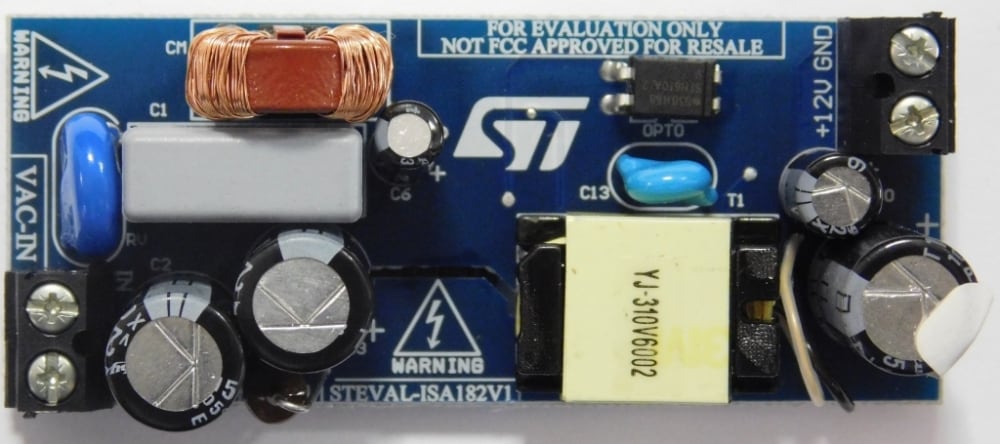

The STEVAL-ISA182V1 evaluation board implements an isolated flyback converter (12 V / 0.7 A) 8.4 W (30 W peak), US range 85 – 132 VAC, developed for metering.
The core of the application is the VIPER38HD, the latest offline converter from the VIPerPlus family. The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control. The device features an adjustable extra power timer (EPT) that enables the IC to sustain overload conditions for a few seconds.
The main characteristics of the evaluation board are its small size, minimal BoM, high efficiency and low standby consumption. Extremely low consumption under the no-load condition is ensured thanks to burst mode operation that reduces the average switching frequency and minimizes all frequency related losses.
VIPER38HD operates at 115 kHz fixed frequency. Frequency jittering is implemented to help meet the standards regarding electromagnetic disturbance. The IC features high-level protections like dual-level OCP, output overvoltage, short-circuits and thermal shutdown with hysteresis. After the removal of a fault condition, the IC is automatically restarted.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| VIPER38 | 高壓轉換器 | VIPerPlus系列：峰值功率固定頻率高壓轉換器 | 點擊下載 |
