STHV749超聲脈沖發生器IC評估板

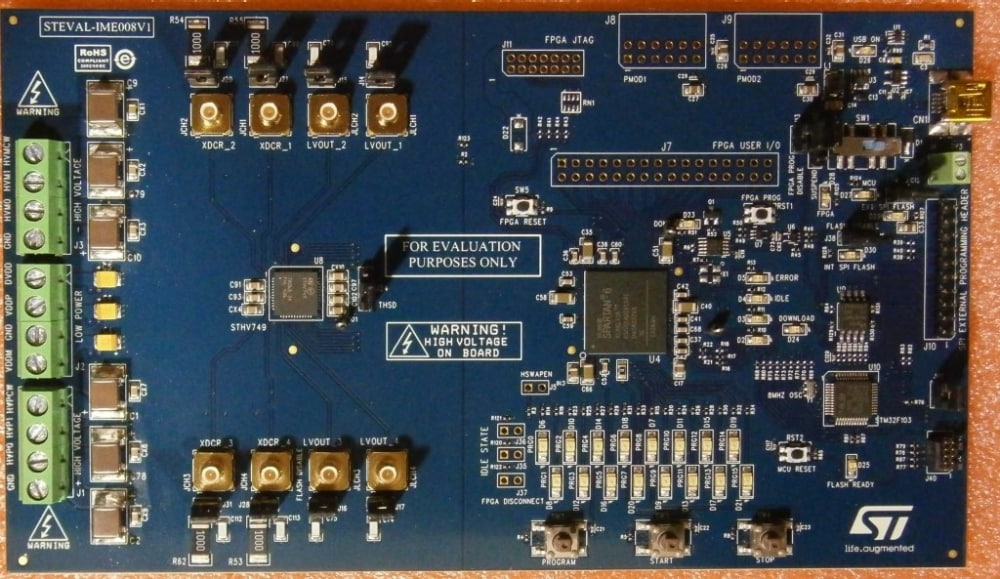

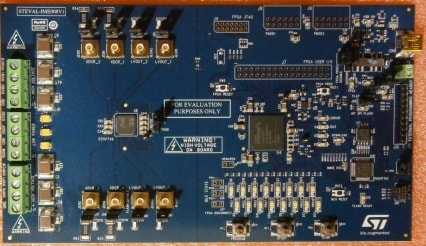

STEVAL-IME008V1

設計簡介

The STEVAL-IME008V1 is a product evaluation board designed around the STHV749 4-channel 7-level high voltage pulser, a state-of-the-art device designed for ultrasound imaging applications.

The output waveforms can be displayed directly on an oscilloscope by connecting the scope probe to the relative BNCs. 16 preset waveforms are available to test the HV pulser under varying conditions.

主要特性

4-channel outputs: high voltage and low voltage BNC connectors
Load simulator using signal equivalent circuits
Possibility to set up own load simulator
16 preset waveforms
USB connector to connect STM32 with PC and supply power to it
4 MB serial Flash memory to host FPGA code and waveforms

Memory expansion connector to add external serial Flash
Connectors to supply high voltage and low voltage to the STHV749 output stage
LEDs to monitor the power management stage
Human machine interface to select, start and stop the generation of the preset waveforms
25 LEDs to monitor board behavior
RoHS compliant

參考設計下載

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
STHV749	Obsolete Products	Quad ±90 V, ±2 A, ±4 A, 3-, 5-, 7-level RTZ, high-speed ultrasound pulser	點擊下載
