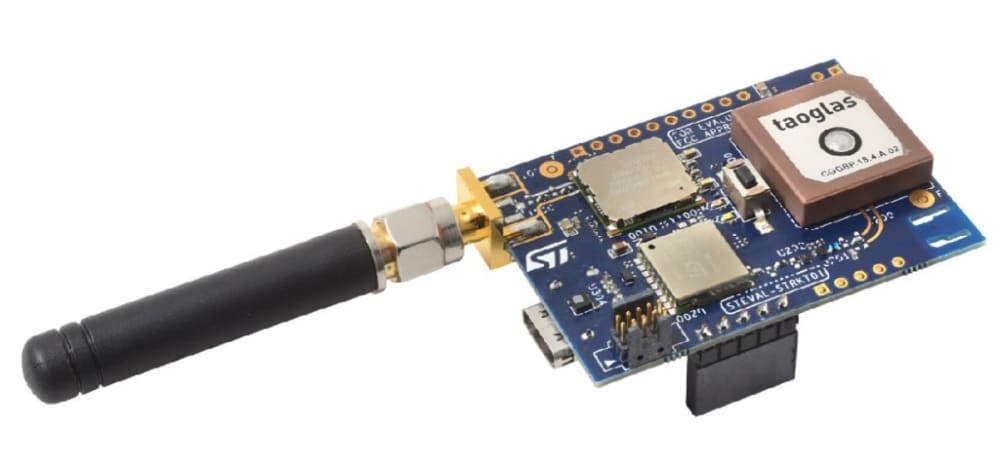

The STEVAL-STRKT01 LoRa? IoT tracker is designed and optimized to implement the latest technologies in IoT tracker applications such as asset, people and animal tracking as well as fleet management.
The evaluation board simplifies prototyping, evaluation and development of tracker innovative solutions. It comes with comprehensive software, firmware libraries, tools, battery, cables and plastic case.
Thanks to the STM32L072CZ embedded in the CMWX1ZZABZ-091 LoRa? module (by Murata), the STEVAL-STRKT01V1 allows acquiring position, managing geofence and data logging from Teseo-LIV3F GNSS module and monitoring motion (LIS2DW12) and environmental (HTS221 and LPS22HB) sensors.
The board also transmits and receives data, configurations and events to and from the cloud over a LoRaWAN? network, or stores data locally in the M95M02-DR EEPROM.
The STEVAL-STRKT01 is a LiPo battery operated solution and implements low power strategies thanks to an enhanced power/battery management design, based on the STBC02 battery charger and the ST1PS01 step-down converter, to ensure long battery autonomy. The STUSB1600A addresses 5 V USB Type-C port management and offers high voltage protection against short circuits.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| Teseo-LIV3F | GNSS模塊 | 小型GNSS模塊 | 點擊下載 |
| STBC02 | 充電器 | 配有LDO、負載開關和復位發生器的線性鋰離子電池充電器 | 點擊下載 |
| STUSB1600 | USB C型和電源傳輸 | USB Type-C控制器（具有VBUS短路保護） | 點擊下載 |
| M95M02-DR | 標準串行EEPROM | 2 Mbit串行SPI總線EEPROM | 點擊下載 |
| ST1PS01 | 降壓穩壓器 | 400mA Nano靜態同步降壓轉換器，提供數字電壓選擇和供電正常信號 | 點擊下載 |
