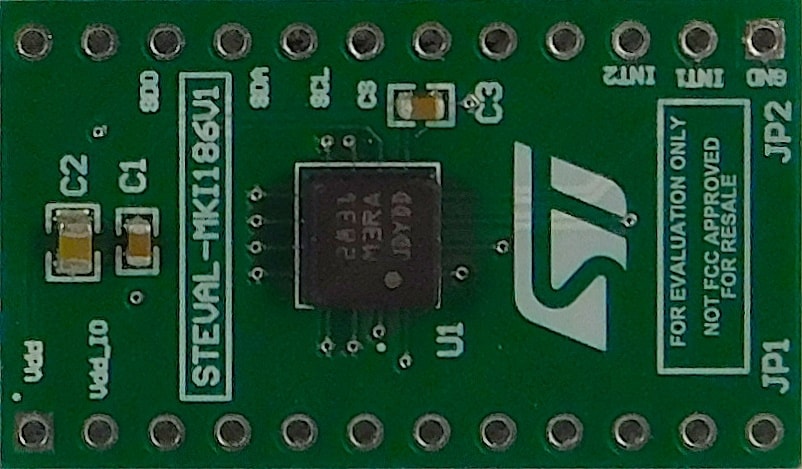

The STEVAL-MKI186V1 adapter board is designed to facilitate the evaluation of MEMS devices in the IIS3DHHC product family. The board offers an effective solution for fast system prototyping and device evaluation directly in the user’s own application.
The STEVAL-MKI186V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete IIS3DHHC pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| IIS3DHHC | 加速度計 | 用于工業應用的高分辨率、高穩定性3軸數字測斜儀 | 點擊下載 |
