STM32F429ZI MCU探索套件*新訂購號STM32F429I-DISC1（代替STM32F429I-DISCO）

32F429IDISCOVERY

設計簡介

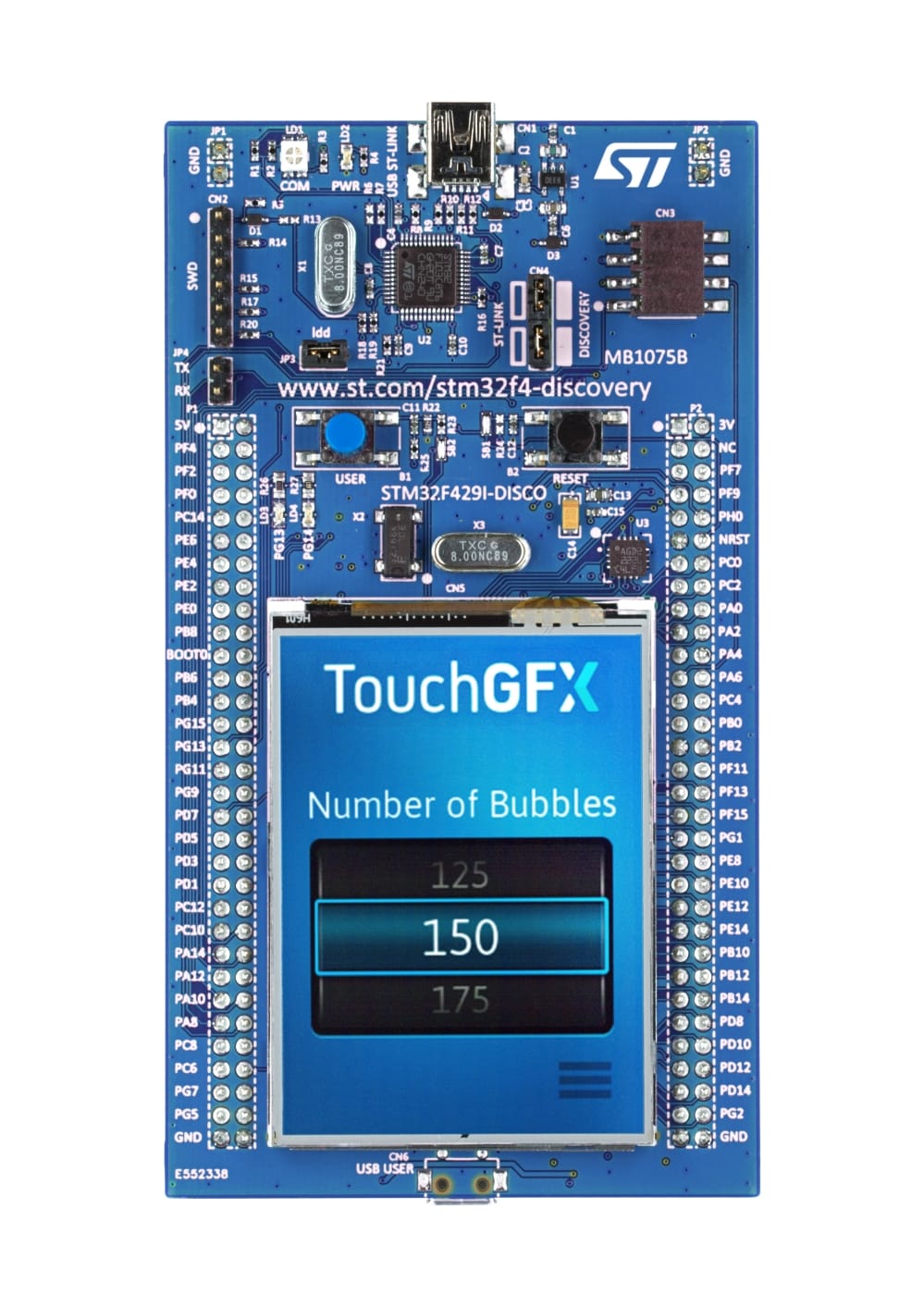

The 32F429IDISCOVERY Discovery kit leverages the capabilities of the STM32F429 high-performance microcontrollers, to allow users to develop rich applications easily with advanced graphic user interfaces.

主要特性

STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
2.4" QVGA TFT LCD
USB OTG with Micro-AB connector
I3G4250D, ST MEMS motion sensor 3-axis digital output gyroscope
Six LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power-on
- Two user LEDs: LD3 (green), LD4 (red)
- Two USB OTG LEDs: LD5 (green) V_BUS and LD6 (red) OC (over-current)
Two push-buttons (user and reset)
64-Mbit SDRAM

Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
On-board ST-LINK/V2-B
USB functions:
- Debug port
- Virtual COM port
- Mass storage
Mbed Enabled? (see http://mbed.org)
Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
Comprehensive free software including a variety of examples, part of STM32CubeF4 MCU Package or STSW-STM32138, for using legacy standard libraries

參考設計下載

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
STM32F429ZI	STM32高性能MCU	帶DSP和FPU的高性能高級系列ARM Cortex-M4 MCU，具有2 MB Flash、180 MHz CPU、ART加速器、Chrom-ART加速器、TFT、帶SDRAM的FMC和TFT	點擊下載
