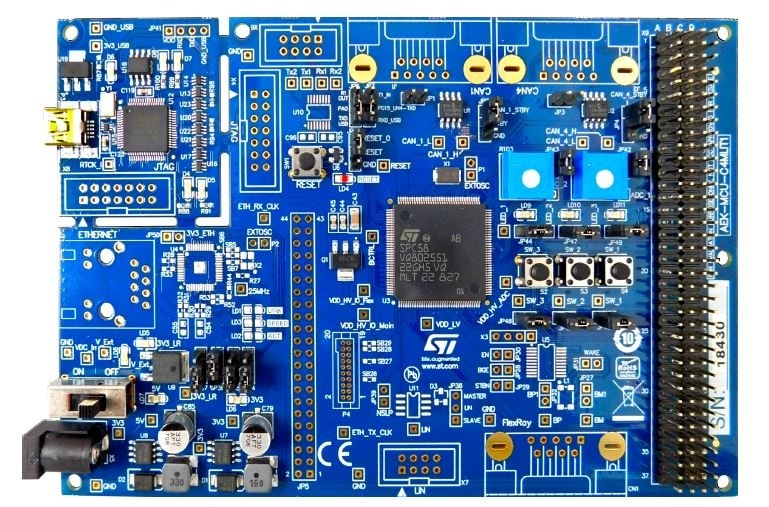

The AEK-MCU-C4MLIT1 board is designed to address Automotive and Transportation applications and other applications requiring automotive safety and security levels, also thanks to the Hardware Secure Module (HSM) embedded on the SPC58EC80E5 MCU, which renders it compliant with the EVITA Medium standard.
The board exploits the functionality of SPC58EC80E5 32-bit automotive grade ASIL-B microcontroller with 4?MB flash, full access to the two MCU cores, GPIOs and peripherals such as ISO CAN FD (with transceiver) and UART at a very competitive price.
The board hosts a PLS debugger/programmer and an extension connector (4x37 pins) for functional interaction across boards that are compatible with the AutoDevKit initiative. The PLS Universal Debug Engine (UDE) software is available for free download and includes a free perpetual 256?Kbyte debugging/programming license.
The SPC5-STUDIO software includes ready-to-run peripheral firmware examples and low-level drivers to support quick evaluation and development. This IDE is available for free download and includes visual configurable code generation engine, board support package (BSP), graphical PinMap editor, startup routines and interrupt services.
The AutoDevKit plugin extends SPC5-STUDIO with support for a set of functional boards (e.g. LED drivers, DC motor drivers, stepper motor drivers, wireless communication, digital power supplies, etc.) and libraries implementing useful functions. To install AutoDevKit, download the STSW-AUTODEVKIT plugin and follow the procedure to install the plug-in for Eclipse/SPC5-Studio.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| SPC58EC80E5 | SPC5 汽車用32位微控制器 | 用于汽車一般用途應用的32位Power Architecture MCU - Chorus系列 | 點擊下載 |
