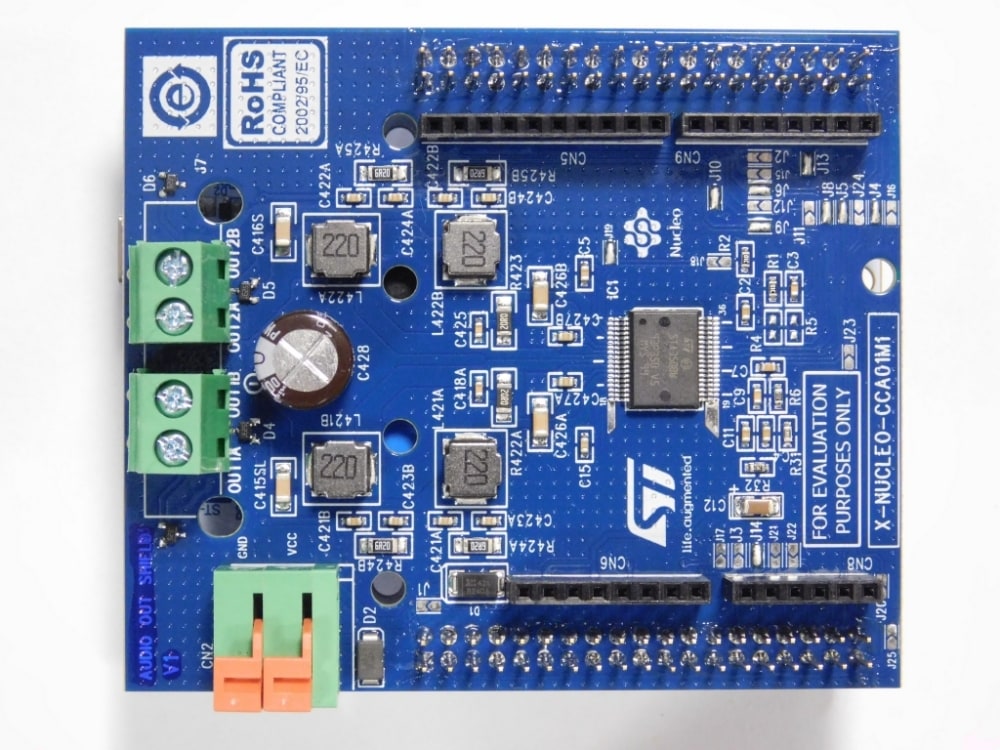

The X-NUCLEO-CCA01M1 is an expansion board based on the STA350BW Sound Terminal? 2.1-channel high-efficiency digital audio output system.
It can be plugged on top of an STM32 Nucleo board and is compatible with the ST morpho connector layout. It enables the output of digital audio streams to a speakers pairs connected directly to the board and allows the evaluation of the STMicroelectronics STA350BW digital audio output component. Up to two X-NUCLEO-CCA01M1 expansion boards can be plugged on top of the same STM32 Nucleo host in order to build a four-channel digital audio output system.
The communication between the STM32 MCU and the STA350BW device is performed through the I2C bus interface for setup and control purposes and the I2S bus for digital audio transmission. A dedicated connector is available on the board in order to supply the power source for the output stage.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| STA350BW | Sound Terminal數字音頻子系統 | 聲音終端2.1通道高效數字音頻系統 | 點擊下載 |
