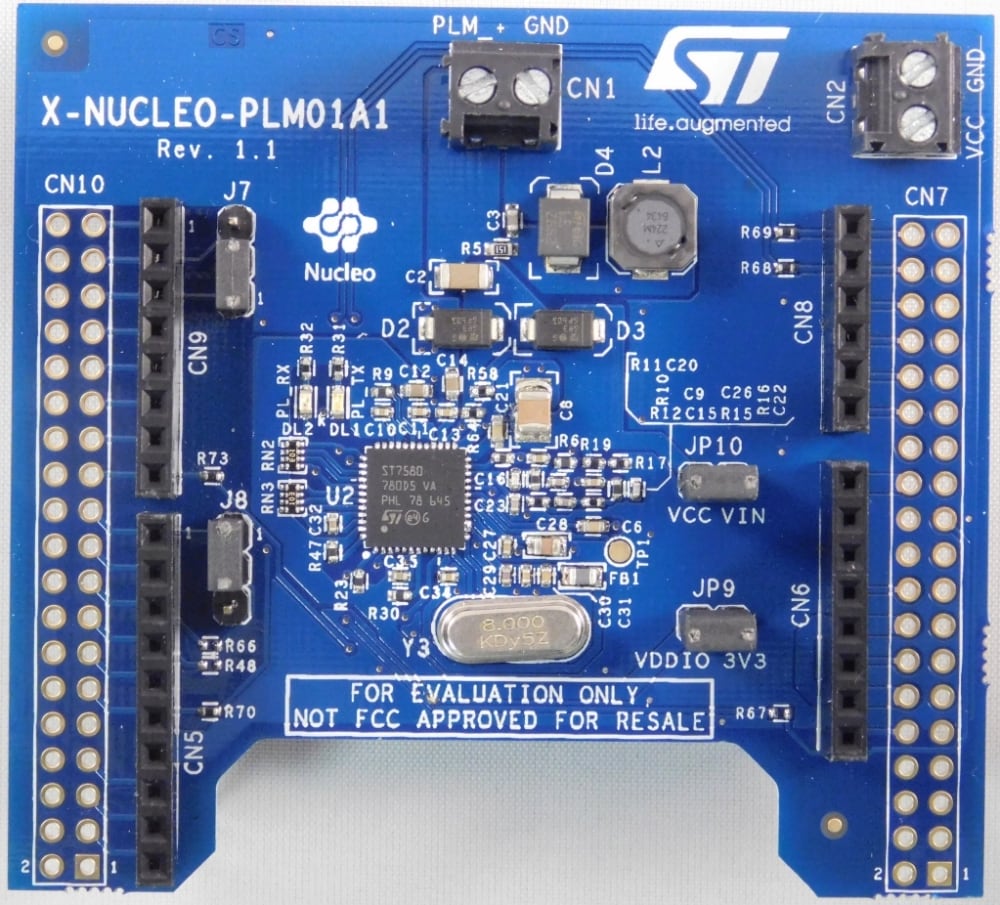

The X-NUCLEO-PLM01A1 expansion board for STM32 Nucleo is based on the ST7580 FSK, PSK multi-mode power line networking system-on-chip. It provides an affordable and easy-to-use solution for the development of connectivity applications based on power line communication. It lets you easily evaluate the communication features of the ST7580 based on a DC two-wire link between two boards.
You can also perform evaluation on an AC power line by connecting the X-NUCLEO-PLM01A1 to an STEVAL-XPLM01CPL board providing effective AC coupling and isolation. The X-NUCLEO-PLM01A1 is interfaced with the STM32 controller via UART and GPIO pins and is compatible with the Arduino UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| ST7580 | 電力線收發器 | FSK、PSK多模電力線網絡片上系統 | 點擊下載 |
歡迎加入EEWorld參考設計群，也許能碰到搞同一個設計的小伙伴，群聊設計經驗和難點。 入群方式：微信搜索“helloeeworld”或者掃描二維碼，備注：參考設計，即可被拉入群。 另外，如您在下載此設計遇到問題，也可以微信添加“helloeeworld”及時溝通。
